AirJet Looms

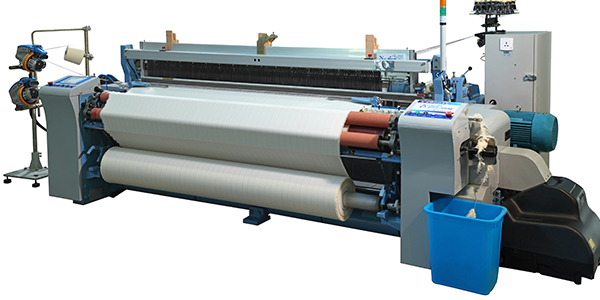

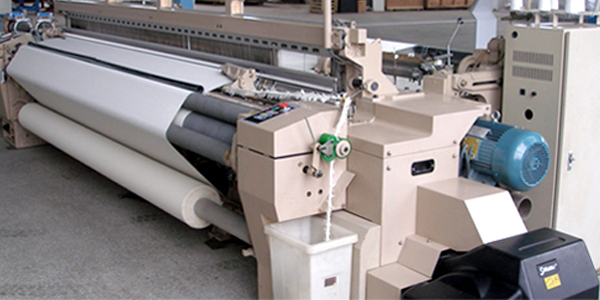

Chinese Branded AirJet Loom
Technical Parameter
| PARTICULARS | MAIN SPECIFICATION |
|---|---|
| Reed Width | 210 cm |
| Width Reduction | 80cm (Adjust On Single Side) |
| Shedding Mechanism | Downside Positive Cam Motion With 7 Harnesss And With Heald Levelling Motion(STAUBLI 1361) |
| Mechanical Speed | MAX.1050 RPM (Actual Production Speed Depending On Yarn And Preparation Quality, Type Of Fabrics, Shedding Motion And Quanlity/Quantity Of Weft Feeders) |
| Weft Colours | Four Colours |
| Quantity Of Weft Feeders | Four Pcs Per Loom, ROJ Brand Adjust Running Speed Of Loom By Replacing Belt Pulley |
| Selvadge Device | Electronic |
| Let-Off Mechanism | Electronic Let-Off Mechanism |
| Warp Stop Motion | 6 Bars, Electric Contact Point Type |
| Warp Beam | Single Section Ground Warp Beam, Flange Dia. 800mm |
| Lubrication | Automatic Centralized Oil Supply |
| Take-Up Mechanism | Electronic Take-Up Mechanism, Cloth Take-Up: • 600mm |
| Quantity Of Warp Beams | 3 pcs per Two Looms |
| Quantity Of Cloth Rollers | 3 pcs per Two Looms |
| Quantity Of Heald Frames | 7 Frames per Loom |
| Quantity Of Heald Wires | 10000pcs |
| Quantity Of Drop Wires | 10000pcs |
| Power Supply | 415v, 50Hz |
| One Reed | |
| WITHOUT TUCKING-IN DEVICE |
Commercial Conditions
| Time of delivery | within three months after receipt of downpayment. |
| Terms of payment | 30% downpayment by t/t for confirmation of order, 70% balance by t/t at Before shipment |
| Original of goods | P. R. Of China |
| Erection | Erection is not included in the spot. |
| Warranty period | 12 month from the date of putting the machines into operation but not longer than 15 months following the date when the seller handed over the goods to the carrier. |

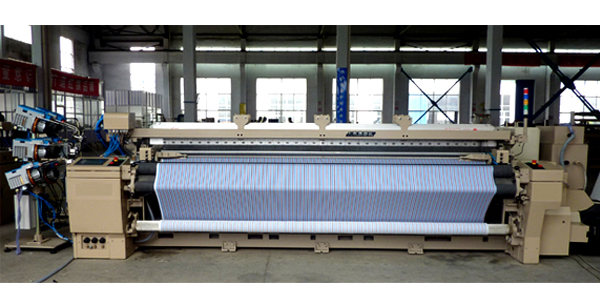

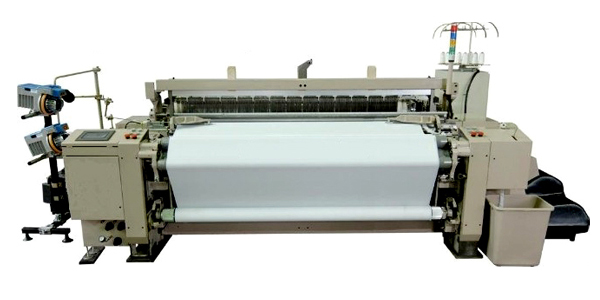

Chinese Local AirJet Loom
Technical Parameter
| PARTICULARS | MAIN SPECIFICATION |
|---|---|
| Working range | Spun : 7-80tex filament:40-500d tex |
| Reed width (cm) | Nominal : 190 230 280 330 Useful reeding width : reduct 0-60cm |
| Weft selection | 6 color, 4 color, 2 colour, single color |
| Motor | Super motor with 2.7kw-3.7kw (selected according to the certain model) |
| Weft picking | Electronic main nozzle + assistant nozzle + profile reed |
| Shedding | Negative cam machine, 8 heald frame Positive cam machine, 8 heald frame Dobby(mechanical), upper negative dobby or electronic dobby, 2-16 heald frame (according to customer's demands) |
| Let-off | Electronic let off-ELO Positive let-off device Flange diameter : 800mm, 1000mm |
| Take-up | Mechanical take-up (25pieces/inch-200pieces/inch) Electronic take-up(25pieces/inch-205pieces/inch) Upper and down temple(according to the varity of fabric) |
| Beating | Crank type multiple sley sword beating device, 4 rods beating(280cm below), 6 rods beating(280cm above) |
| Yarn storage | Electronic tumbler |
| Selvedge | Leno yarn by planetary gear |
| Waste filling removel | Mechanical take-up 3 roller |
| Cutter | Mechanical cutter |
| Speed | * 500-800RPM (DEPEND ON THE WEAVING FABRIC) |
| Lubrication | Oil lake for the main drive parts, thicker oil for centralized lubrication of the rest part(pump) |
| Control | Weft : double optical feeler Warp : electronic sensor control Selveage : stop motion for selvage and catch cord yarn Parking reason : display:4 color lamp display, main keyboard displays the information |
| Electronic box | The operation of the loom is controlled by computer Electromagnetic fixed brake Slow speed inching by variable frequency Main keyboard |
* 1 R.P.M : 500-800(DEPEND ON THE WEAVING FABRIC)
 |
||
 |
||
We also supply all types of spare parts for Air Jet Looms on advance order.
