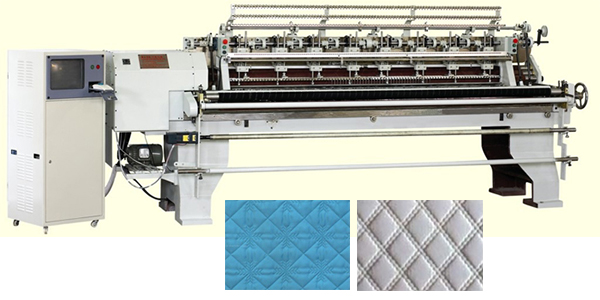

Quilting Machine
Description And Function
With hundreds of patterns, quilting for mattress, handbag, clothing, bedding, sofa products.
Characteristics
- Computerized quilting machine, plenty patterns for choice, and easy to designing new patterns
- Main shaft and X & Y all driven by Servo driver
- 360° quilting; Both for joint and independent patterns
- On-line help on operation and display of quilting
- Stitch length 2mm-6mm adjustable
- Pattern compensation to adjust quilting according to pattern
- Automatic stop on thread broken (optional)
- Infrared sensors to guarantee the safety of the operator
Specification
| MODEL | KW64C | KW94C | KW118C |
| Working width | 64" (162cm) | 94" (238cm) | 118" (299cm) |
| Number of needle | 64*2/3 (1" distance) |
94*2/3 (1" distance) |
118*2/3 (1" distance) |
| Needle bar | 2 or 3 | ||
| Dimensions (L×W×H) | 4.06m×1.75m×1.9m | 4.8m×1.75m×1.9m | 5.43m×1.75m×1.9m |
| Shuttle | 7# 10# | 7# 10# | 7# 10# |
| Quilting speed | 400~600R/M | 400~600R/M | 400~600R/M |
| Quilting thickness | 30 mm, 40-500 GSM | 30 mm, 40-500 GSM | 30 mm, 40-500 GSM |
| Power | 380V, 50/60HZ, 3.5KW | 380V, 50/60HZ, 4.5KW | 380V, 50/60HZ, 4.5KW |
Standard Accessories
| MODEL | 7# / 10# |
Needle | Hook | Tool | Pattern | |
| Shuttle | Shuttle Shelf | |||||
| KW64C | 140 pcs | 70 pcs | 300 pcs | 35 pcs | 1 set | 100 pcs |
| KW94C | 200 pcs | 100 pcs | 400 pcs | 50 pcs | ||
| KW118C | 250 pcs | 125 pcs | 500 pcs | 65 pcs | ||
Special models made to order.
